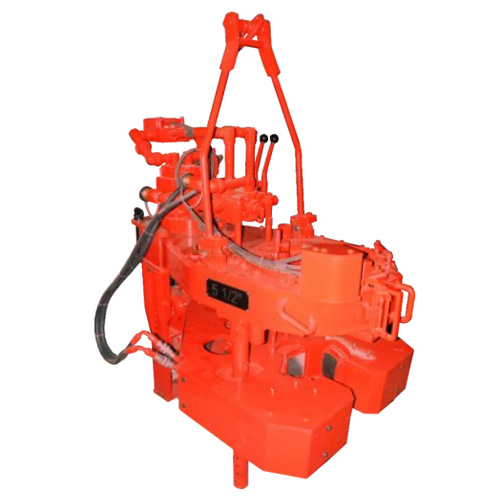

Hydraulic Tongs


Sara Sae tongs are available in a variety of models, size and types to handle casings, drill collars, sucker rods and tubing including chrome tubular and can be supplied with hydraulic or manual backup assemblies

Download
Download product catalogue

Hydraulic Tongs

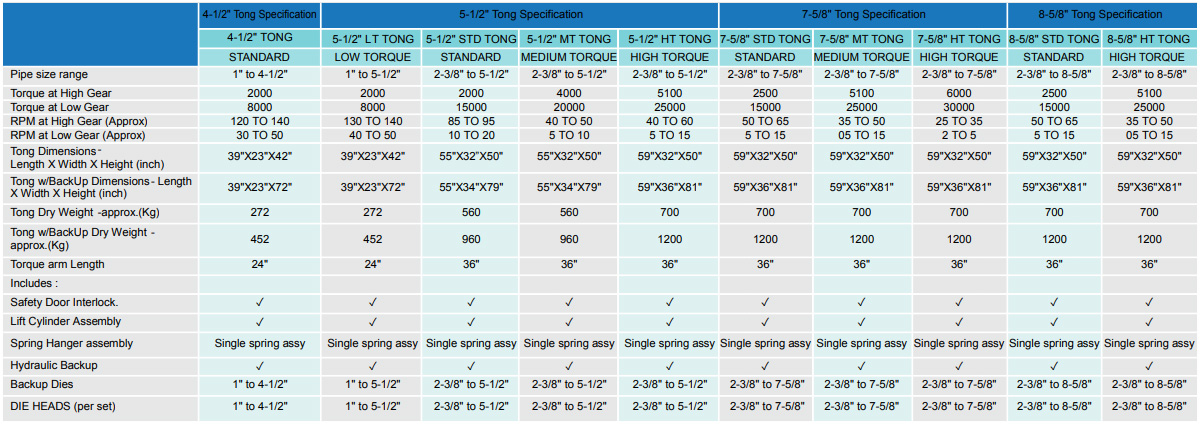

Hydraulic Tongs Specific Configurations1

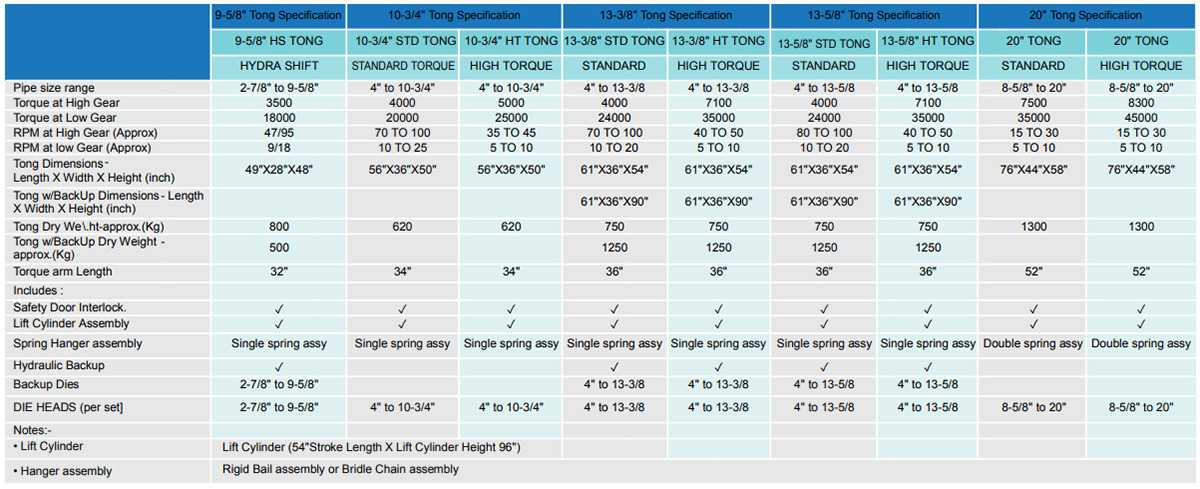

Hydraulic Tongs Specific Configurations2


Computerized Torque Control System

Microprocessor based systems for providing computerized analysis of each joint and complete string. Provides graphic analysis of torque Vs. turn, torque Vs. time and various other options.

Computerized Torque

Power Units

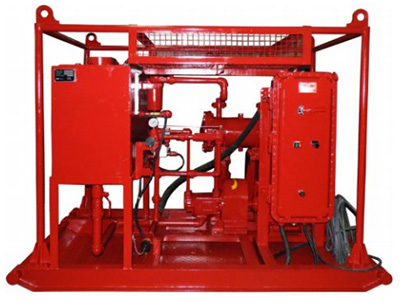

Zone I - Electric Power Unit Technical Specifications

  • Pump: Variable delivery axial piston pump.
  • Engine: 50/60 hp (37/45KW) Eexd electric motor.
  • Cooler: thermostatically controlled hydraulic oil cooler.
  • Electric Supply: 3 phase 415/480 volts 50/60 Hz.
  • Hydraulic Output: 2,500 psi (172 bar) or 35 gpm (160 litres per aminute)

Dimensions

  • Size: 4' 9" long x 4' 9" wide x 4' x 9" high (1,500mm long x1,500mm wide x 1,500mm high)
  • Weight : 5,060 lbs (2,300 kg)
Power Unit

Zone II - Diesel Power Unit Technical Specifications

Dimensions

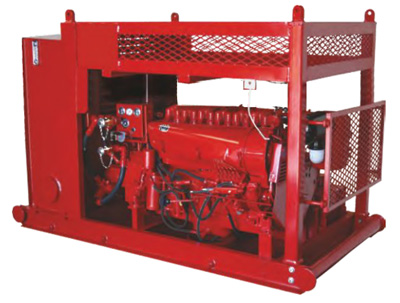

Non-Zoned Diesel Power Unit Technical Specifications

  • Engine: 6 cylinder diesel
  • Hydraulic Output: 2,500 psi (172 bar) or 35 gpm.
  • (160 litres per minute)
  • Starter: Air or spring-operated.

Dimensions

  • Size: 7' 8" long x 4' 3" wide x 4' 9" high(2,400 long x 1,300 mm wide x 1,500 mm high)
  • Weight: 4,510 lbs (2,050 kg).
Power Unit
