Swivel Joints


Available in sizes" through 3" up to 15,000 PSI nonshock cold working pressure, Sara Sae Swivel Joints offer the following features

  • Minimum flow restriction
  • Heavy duty hex head style ball loading plug
  • Grease retainer ring (ensures clean ball race)
  • Standard packing units (operating temperature to 2250 °F)
  • High temperature packing units (operating temperature to 450°F).
  • Superior hardened ball races ensure uniform surface hardness and depth for longer life under severe thrust and radial loading
  • Standard Swivel Joints are provided with API line pipe threads.
  • Other end connections are available on request.
  • Available for standard and sour service
  • All sizes are available in 8 styles, for 360° rotation in 1,2 or 3 planes
sjt

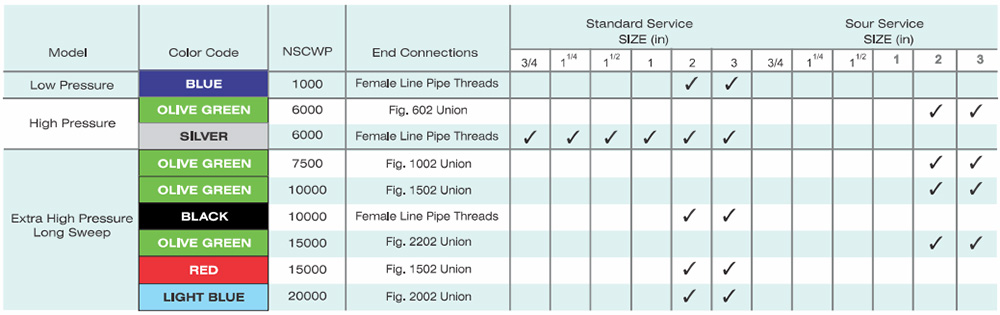

Quick Reference Chart

Quick Reference Chart

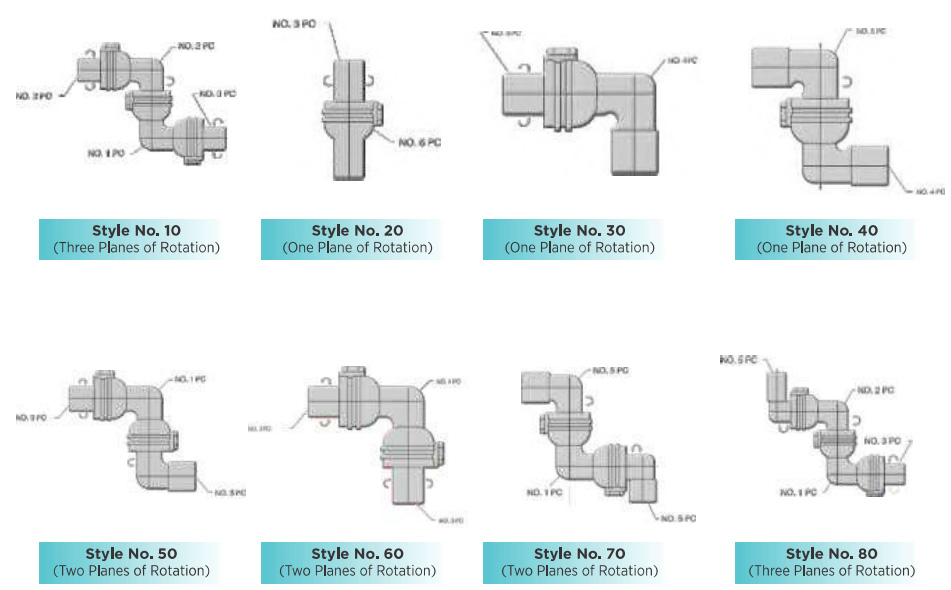

Short Radius Swivel Joints

short radius joints

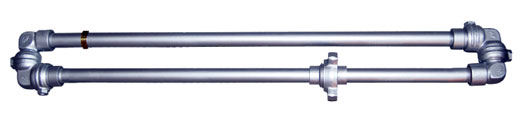

Steel Hose Assemblies

Steel Hose Assemblies

High pressure cementing and circulating hose incorporate swivel joints of forged steel with superior quality hardened ball races and high pressure type packing units.

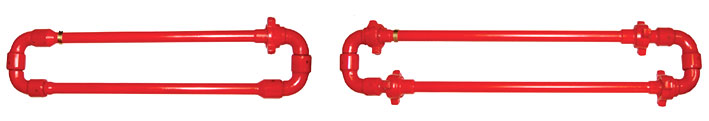

One wing union and two style 50 or style 10 swivel joints with threaded ends

Oilfield Equipments Joints

  • One wing union and one each style 50 and style 10 swivel joints with integral wing union ends
  • Four wing unions and two style 50 or style 10 swivel joints with integral wing union ends
  • Four wing unions and two style 50 or style 10 swivel joints

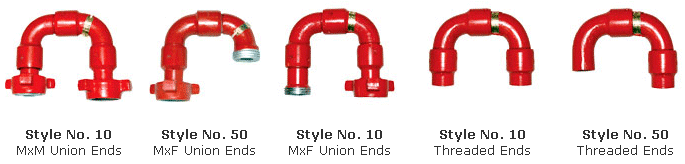

Long Radius Swivel Joints

Long Radius Swivel Joints
