High Pressure Test Units


High Pressure Test Units are provided in working pressure ranges from 5,000 to 30,000 PSI.

These units are recommended for high pressure testing of BOP stacks, choke and kill lines, Christmas trees and any other type of equipment requiring high pressure static testing. Test Units are available in unit-mounted, portable, skid-mounted and high flow electric driven styles. Accessories include stand-mounted chart recorders and high pressure hose assemblies.

Skid-mounted Self-contained Test Unit

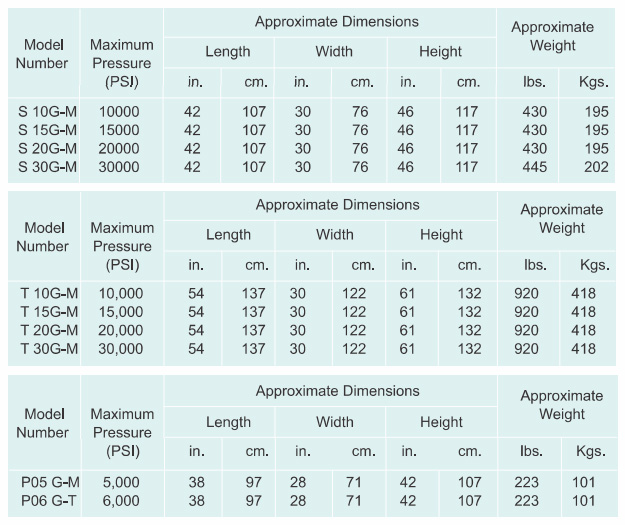

Specification


specification

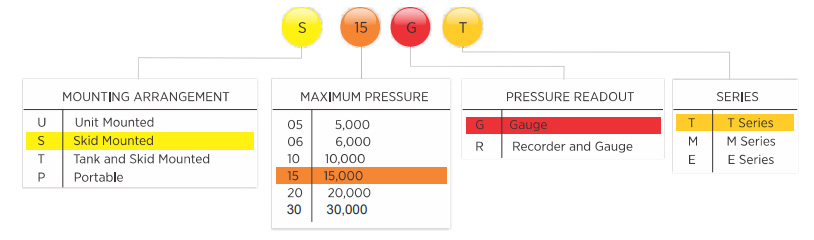

Model Number Identification

All High Pressure Test units are equipped with a nameplate containing the unit model. This number contains the mounting arrangement, maximum pressure readout and series identification

MNI

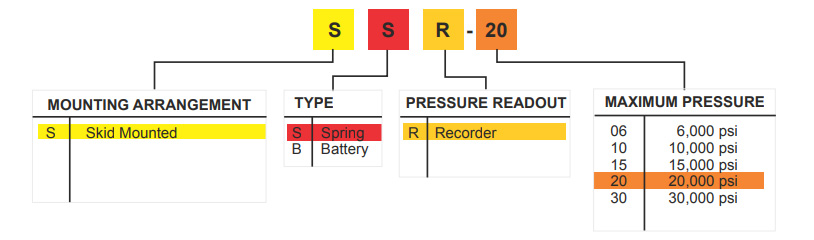

Stand Mounted Recorder

Stand Mounted Recorders are available to assist with documenting test performance of equipment being tested with all styles of High Pressure Test Units. These are provided in 15,000, 20,000 and 30,000 PSI models complete recording coverage.

SMR

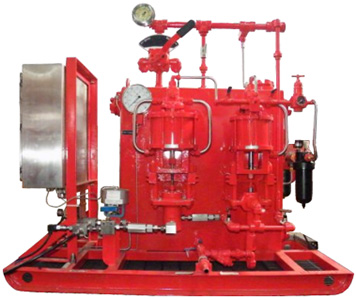

PLC Test Unit

Sara Sae Hydraulic PLC Test unit is self-contained air- driven unit of proven design with Computer/Notebook control cabinet. It can be used to pressurize & Test valves, fittings, hoses, piping, vessels and wellhead equipment etc. to be define/defined Hydraulic pressure.

All components, including the necessary connecting materials and tubing are built together on epoxy painted frame complete with reservoir.

Key Features

  • Work shop pressure test unit.
  • Easy and low cost maintenance.
  • Ergonomic operating design.
  • Pressure ranges available up to 2068 bar/30,000 PSI.
  • Flow up to 10 liters/minutes or 2.4 GPM.
  • Real time v/s Pressure recording.
  • Optional Battery Backup
  • Can be retrofitted on existing unit.
  • Option of secondary units eg. PSI, KPA, Kg/cm2, Bar.
  • Settable Min Max pressure limit.
  • Settable time zone for accurate login.
  • Proven reliability.
  • All operating features and gauges at workable height.
  • All parts are made out of non-corrosive materials.
  • Auto/Manual operation.
  • Show test procedure on Computer/Notebook screen and print test result.
PTU

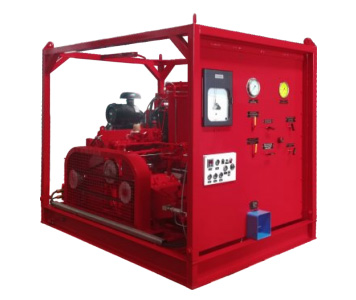

DIESEL POWER TEST UNIT

Test Pressure generated by using Triplex pump which is operated or powered by Diesel Engine. Test pressure generated upto 15,000 PSI.

DIESEL POWER TEST UNIT

DIESEL POWER TEST UNIT

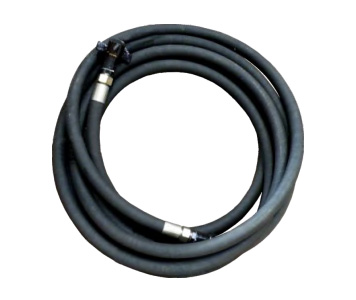

High Pressure Test Hoses are available to use with the test units. These hoses are equipped with swivel-type end fittings on each end. Some Test Units can produce pressures beyond the working pressure ratings of these hoses. For these Ultra- High Pressure Test, 316 stainless steel tubing is recommended.

Hoses
